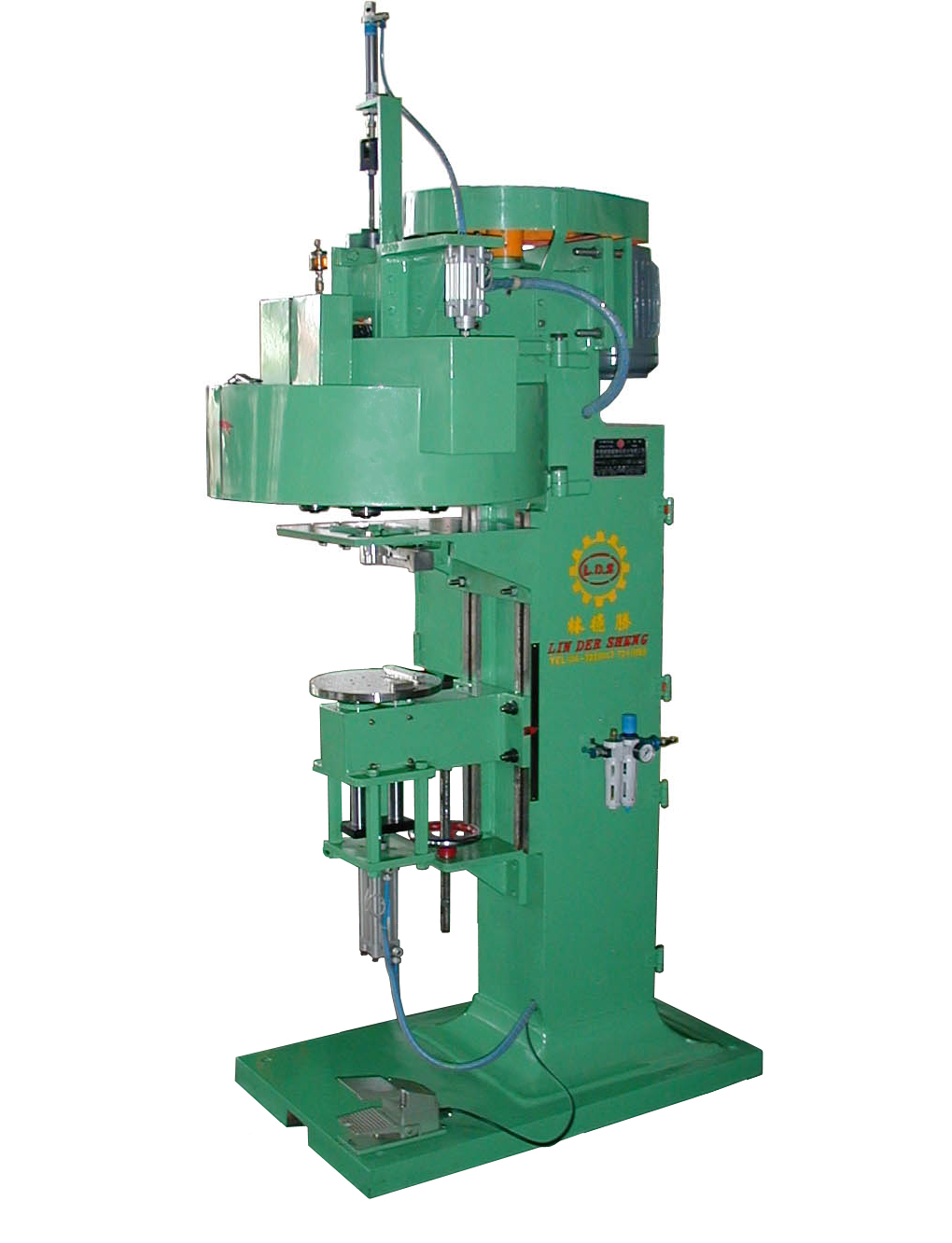

SEMI-AUTOMATIC ROUND CAN SEAMING MACHINE (FOR OIL FILTER)
Type : LDS-139R
Description:
1
The seaming-arms of seamer adopts the design of SIX SEAMING ROLLERS, prolong the lifetime of seaming arm and promote the seaming quality.
2
The seaming roller adopt the adjustable type, easy for adjust. Besides, the design of double-groove can decrease the cost of seaming roller.
3
The mould adopts the design of MOULD IN SET, easy for replacement.
4
Can supporting mechanism adopt the design the design of DOUBLE SHAFT GUIDE ROD. Refrain from shaking.
5
Seaming arm adopts special adjustment design. It can be properly adjusted against different can diameter.
MODEL
LDS-139R
POWER (Hp)
1
CAPACITY (pcs/min)
12~25
COMPRESSED AIR CONSUMPTION (liter/min)
60
BODY OPPOSITE SIDE (mm)
50~190
BODY HEIGHT (mm)
180~400
MACHINE MEASUREMENT (mm)
1010L*600W*700H
NET WEIGHT (Kg)
700
